TL;DR

• Production-grade fintech platform running on multi-AZ Kubernetes clusters
• Dedicated Test, Staging, Production, and DR environments
• GitOps deployment using Argo CD
• CI pipeline via Jenkins + Docker Registry
• Secure traffic flow via Cloudflare → WAF → CDN → Load Balancer → API Gateway
• Supports Blue-Green, Canary, and Feature Flag deployments
• High-performance data stack using PostgreSQL, Redis, Apache Kafka, and Elasticsearch
• Full observability via Prometheus, Grafana, Grafana Loki, and AlertManager
• Built with Disaster Recovery (DR) to ensure business continuity during failures
• Designed for security, compliance, high availability, and financial-grade resilience



---

Project Overview

This architecture was designed for a mission-critical fintech platform handling highly sensitive financial transactions where availability, consistency, and security are non-negotiable.

The platform follows a microservices architecture deployed on Kubernetes, spread across multiple environments:

• Test
• Staging
• Production
• Disaster Recovery (DR)

Since fintech systems cannot tolerate extended downtime or data inconsistency, the platform includes:

• fault-tolerant infrastructure
• real-time monitoring
• automated failover readiness
• backup and restore workflows
• multi-layer security

The architecture ensures continuous operation even during infrastructure failures, region outages, or bad deployments.





---

Goals of the Architecture

• Achieve 99.99% availability
• Ensure business continuity with DR
• Enable zero-downtime deployments
• Maintain transaction integrity
• Prevent unauthorized access and attacks
• Reduce deployment risk using GitOps
• Support rapid scaling during transaction spikes
• Provide real-time observability and alerting
• Meet fintech-grade compliance requirements



---

High-Level Architecture

The infrastructure consists of four major environments:

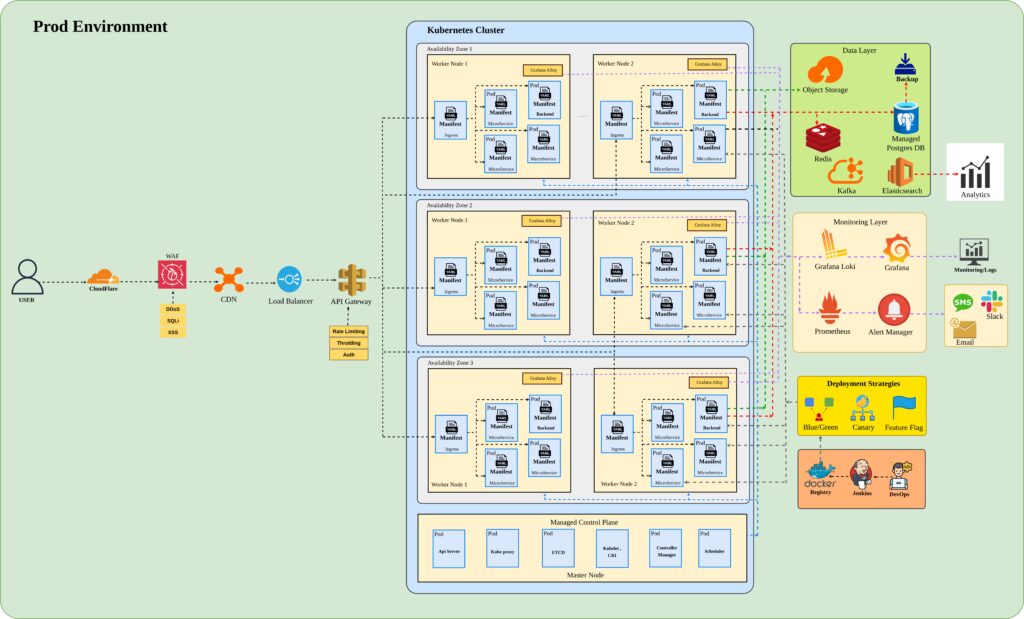

Production Environment

Handles live customer transactions.

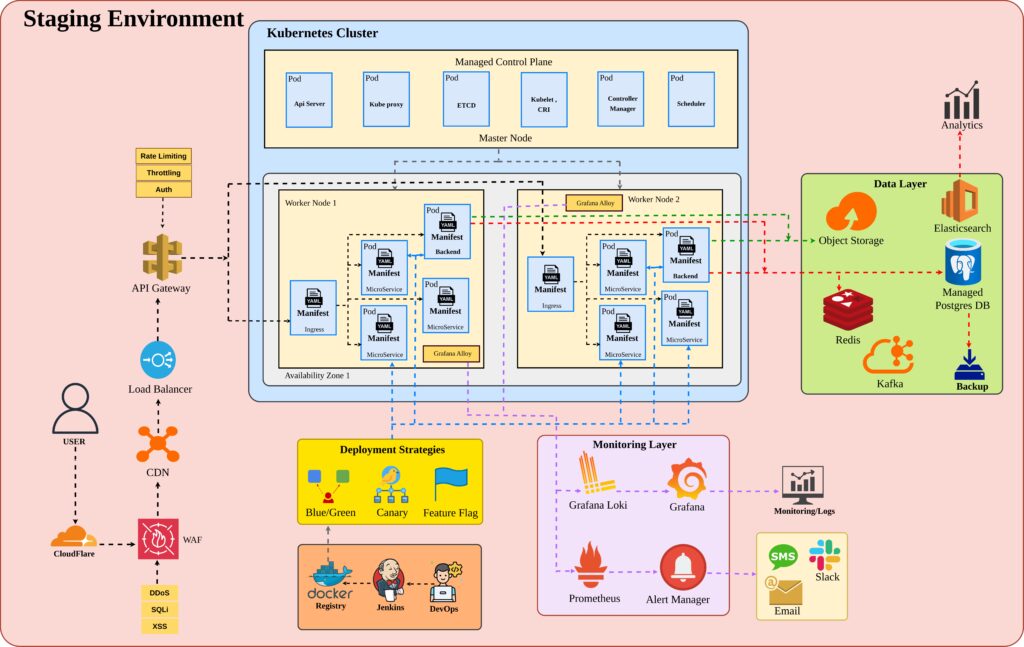

Staging Environment

Production-like cluster for release verification.

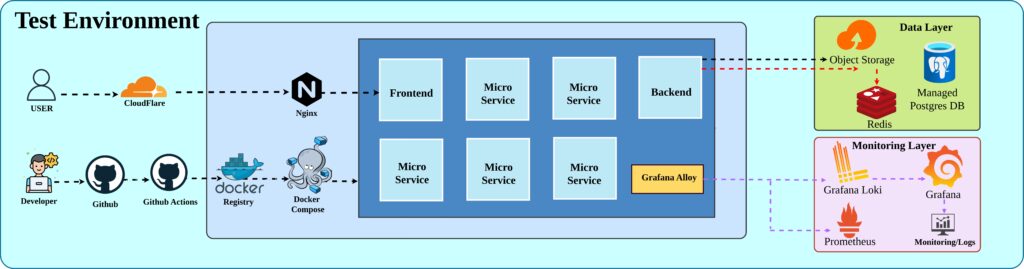

Test Environment

Used for developer validation and rapid feature testing.



Disaster Recovery Environment

Standby infrastructure used during major production failures.

Each environment contains:

• Kubernetes cluster
• Microservices workloads
• Monitoring stack
• Data services
• Deployment tooling



---

Core Components

---

Edge Security Layer

• Cloudflare
• WAF
• CDN
• DDoS Protection
• SQL Injection Prevention
• XSS Protection

Purpose:
Protect the fintech platform from malicious internet traffic before requests reach the application.





---

Traffic Management Layer

• Load Balancer
• API Gateway
• Rate Limiting
• Authentication
• Request Throttling

Purpose:
Securely route and control all incoming requests.





---

Kubernetes Compute Layer

All application workloads run on Kubernetes.

Production Cluster

• Multi-AZ worker nodes
• High availability scheduling
• Replica-based deployments

DR Cluster

• Replica of production
• Warm standby infrastructure

Staging Cluster

• Production simulation

Test Environment

• Lightweight environment for rapid iteration



---

Application Layer

Microservices include:

• Frontend
• Backend
• API Services
• Authentication Services
• Business Logic Services
• Analytics Services

Designed for:

• Independent scaling
• Fault isolation
• Faster releases



---

Data Layer

Core data services include:

Primary Database

PostgreSQL

• ACID transactions
• Financial consistency
• Managed backups

Cache

Redis

• Session storage
• Fast reads
• Rate limiting

Event Streaming

Apache Kafka

• Payment events
• Audit logs
• Async workflows

Search & Analytics

Elasticsearch

• Search
• Audit trails
• Reporting

Object Storage

Used for:

• Statements
• Reports
• Compliance documents
• Backups



---

Networking & Traffic Flow

User Request Flow

User
 → Cloudflare
   → WAF
     → CDN
       → Load Balancer
         → API Gateway
           → Kubernetes Ingress
             → Microservices
               → Data Layer



---

Internal Service Flow

Frontend
 → API Service
   → Auth Service
   → Payment Service
   → Ledger Service
   → Notification Service

Services communicate via:

• REST/gRPC
• Kafka events
• Internal cluster networking



---

GitOps Flow

Developer
 → Git Commit
   → Jenkins CI
     → Docker Registry
       → Manifest Update
         → ArgoCD Sync
           → K8s Environments

---

Data Layer & Persistence Design

This is one of the most critical parts of fintech infrastructure.

Requirements:

• Zero corruption
• Transaction consistency
• Fast recovery
• Encrypted storage

Implemented design:

• PostgreSQL for transactional data
• Redis for high-speed access
• Kafka for event durability
• Backup snapshots
• Replication to DR environment
• Periodic integrity verification

Key properties:

• Durability
• Consistency
• Recoverability



---

Security Design

Security follows defense-in-depth.

---

Edge Security

• DDoS mitigation
• WAF rules
• Bot filtering

---

Network Security

• Private networking
• Security policies
• Cluster isolation
• Namespace isolation

---

Application Security

• JWT/Auth
• Role-based access
• API throttling
• Fraud prevention controls

---

Data Security

• Encryption at rest
• Encryption in transit
• Secret management
• Audit logs

---

Operational Security

• Restricted admin access
• GitOps approvals
• Auditability
• Deployment controls



---

CI/CD & Deployment Strategy

Deployment strategy is designed to minimize risk.

---

CI

Using Jenkins:

• Build
• Test
• Security scan
• Dockerize
• Push to registry

---

CD (GitOps)

Using ArgoCD:

• Watch manifests
• Detect drift
• Auto-sync desired state
• Rollback on failure

---

Deployment Patterns

Blue-Green Deployment

Two production environments, switch traffic after validation.

Best for:

• Zero downtime
• Easy rollback

---

Canary Deployment

Release to a small subset of traffic.

Best for:

• Risk mitigation
• Early issue detection

---

Feature Flags

Enable features without redeployment.

Best for:

• Controlled rollout
• A/B testing





---

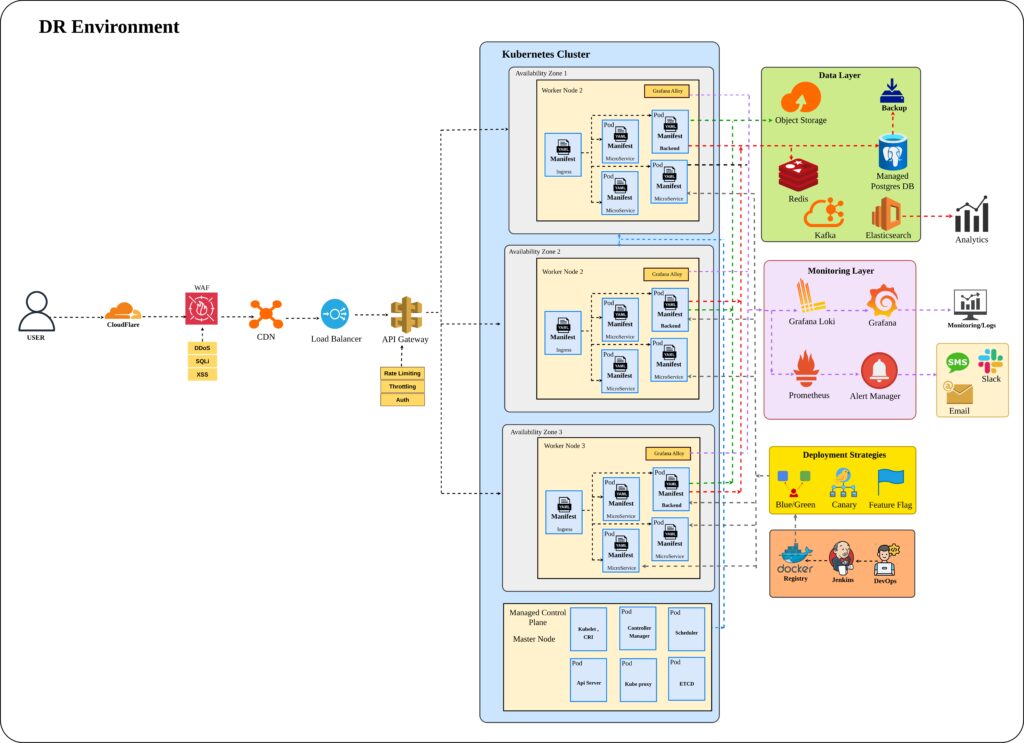

Disaster Recovery (DR) Strategy

This is the standout feature of this architecture.

---

DR Model

Warm Standby DR

DR infrastructure remains ready with replicated services and synchronized data.

---

Replicated Components

• Kubernetes workloads
• PostgreSQL backups
• Redis snapshots
• Kafka events
• Object storage
• Monitoring stack

---

Failover Flow

If Production fails:

Production Failure
 → DR Activation
   → DNS / LB Switch
     → Traffic Routed to DR

---



DR Objectives

RPO (Recovery Point Objective)

Near-zero data loss

RTO (Recovery Time Objective)

Few minutes to recovery

This is critical for fintech systems where transaction loss is unacceptable/.



---

Production Challenges & Fixes

Challenge	Fix
Traffic spikes during peak transactions	HPA and auto scaling
Risky deployments	Canary + Blue/Green
Data consistency across services	Kafka event-driven design
DR synchronization	Continuous replication
Incident detection	Prometheus + AlertManager
Debugging distributed systems	Centralized logs with Loki

---

Key Learnings

• Fintech is fundamentally about trust
• Infrastructure must prioritize consistency over convenience
• DR planning is as important as production design
• GitOps greatly improves deployment reliability
• Observability is mandatory in distributed systems
• Security must exist at every layer
• Kubernetes enables powerful scaling, but requires strong operational discipline

---
